Medium-pressure fans MDV

Can be used as a fan or vacuum generator in extraction systems.

ESTA MDV medium-pressure fans can be used to move large volumes of air at constant negative pressure. This ensures a steady plant characteristic curve. A constant extraction performance at different operating points is also guaranteed. High energy efficiency means low operating costs. In tandem with upstream filter unit, MDV series medium-pressure fans are also ideal for the extraction of dusts and shavings.

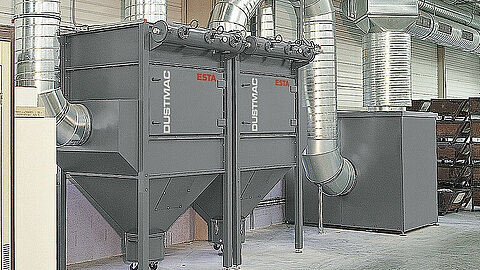

large-air-volume-welding-fumes-dusts-chips-small

Applications

Medium-pressure fans for multiple-site extraction

Ideal as a component for a central extraction system
Feed and exhaust air blower (e.g. For cooling)
Central welding fume extraction
Applications needing a very constant negative pressure with high air flow rate

Ideal for these processes

Central extraction

Welding

Types of dust

Shavings

Dusts
Welding fumes

Types of set-up

Stationary setup

Central extraction systems are able to carry out extraction on multiple machines in parallel from its location via a pipe system.

Your benefit

Constantly high air volume free

Low operating noise through sound isolation
Wear- and maintenance-free construction
Low operating costs through cleanable filters and high energy-efficiency

Downloads & data MDV series

Medium-pressure fans MDV	7.5	15
Max. airflow m³/h	3,400	6,700
Intake** mm	280	355
Max. negative pressure Pa	4.400	4.500
Nominal power* kW	7.5	15.0
Motor speed rpm	3,000	3,000
Dimensions (B/H/T) mm	1,310 x 1,676 x 1,600	1,310 x 1,676 x 1,600
Sound level dB(A)	69	73
