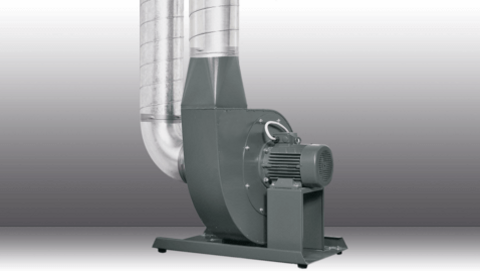

RG SERIES
Application RG series
In combination with filter units
For exhaust air operation without filtration
For connection to capture elements
Single- and multiple work station extraction of dust, fumes and vapours in trade and industry
Soldering
Welding
Welding fumes
Soldering smoke
Dusts
Vapours
Stationary setup
Fixed extraction systems which can be connected next to processing machines.
ATEX CONFORM
Available for ATEX zones on request
Rugged processing
Low operating costs
Wide range of applications
Low space requirement thanks to
compact construction
High power
Stainless steel (V2A) in the food industry
Motor assembled on left
Variable blower connection
Free of ignition sources for extraction of inflammable substances
A/C for RG-100 and RG-200
Downloads & data RG series
| RG | 100 | 200 | 300 | 400 |
|---|---|---|---|---|
|
Max. airflow m³/h | 1,000 | 2,000 | 3,000 | 3,200 |
|
Intake mm | 100 | 150 | 180 | 250/315 |
|
Max. negative pressure Pa | 1,400 | 1,600 | 2,300 | 3,150 |
|
Motor* kW | 0.55 | 1.1 | 2.2 | 3.0 |
|
Dimensions RG (L/B/H) mm | 535 x 450 x 480 | 595 x 520 x 555 | 640 x 535 x 610 | 711 x 700 x 1,012 |
|
Noise level dB(A) | 80 | 82 | 84 | 84 |
| RG | 500 | 600 | 700 | 800 |
|---|---|---|---|---|
|
Max. airflow m³/h | 4,000 | 5,500 | 7,000 | 8,000 |
|
Intaker mm | 250/315 | 315/355 | 315/400 | 355/400 |
|
Max. negative pressure Pa | 3,400 | 3,500 | 3,400 | 3,950 |
|
Motor* kW | 4.0 | 5.5 | 5.5 | 7.5 |
|
Dimensions RG (B/T/H) mm | 711 x 700 x 1,012 | 737 x 700 x 1,062 | 762 x 700 x 1,062 | 820 x 1,000 x 1,198 |
|
Noise level dB(A) | 84 | 84 | 83 | 84 |
*Mains voltage/ Mains frequency: 400V/50Hz
| RG | 100 | 200 | 300 | 400 |
|---|---|---|---|---|
| Standard version | 01011 | 01021 | 01031 | 01441 |
| RG | 500 | 600 | 700 | 800 |
|---|---|---|---|---|
| Standard version | 01451 | 01461 | 01471 | 01481 |
CONTACT RG series
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
Accessories RG series
Extraction arms
For capturing welding- and soldering fume, gases, vapour and dusts. Connection to extraction system or fan possible.
Extraction hood
Optimal capture directly at origin. Flanged, square or modular system extraction hoods are available depending on the application.
Extraction hoses
Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.
Pipe system
For connecting multiple suction points to a central extraction unit. Extensive range of rugged, high-quality finish spiral seam pipe parts.
