HIGH-PRESSURE FAN HDV

Low operating costs through high efficiency.

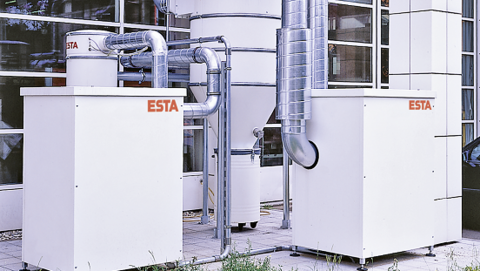

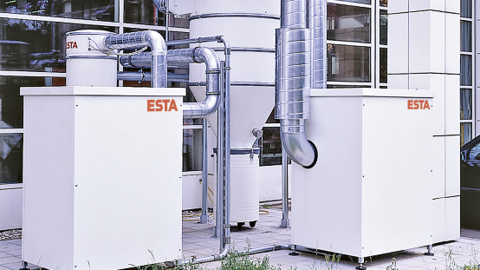

The HDV high-pressure fans connect high negative pressure and high air volumes. This ensures a steady plant characteristic curve and a constant extraction performance at different operating points. In connection with a filter unit and pipe system, a high-pressure fan can be used as a central extraction unit for the extraction of dusts, shavings or welding fumes. The low-noise fan mounted in the sound enclosure is installed separately next to the filter system.

Applications

High-pressure fans for multiple-site extraction

Ideal as a component for a central extraction system
Feed and exhaust air blower (e.g. For cooling)
Central welding fume extraction
Applications needing a very constant negative pressure with high air flow rate

Ideal for these processes

Central extraction

Welding

Types of dust

Welding fumes

Dusts
Shavings

Types of set-up

Stationary setup

Central extraction systems are able to carry out extraction on multiple machines in parallel from its location via a pipe system.

Your benefit

Constantly high air volume free

Low operating noise through sound isolation
Wear- and maintenance-free construction
Low operating costs through cleanable filters and high energy-efficiency

Downloads & data HDV series

High-pressure fan HDV	11	18.5	22	30
Max. airflow m³/h	2,000	3,000	3,800	6,000
Intake** mm	260	250	280	355
Max. negative pressure Pa	8,200	10,300	10,400	10,300
Nominal power* kW	11.0	18.5	22.0	30.0
Motor speed rpm	3,000	3,000	3,000	3,000
Dimensions (B/H/T) mm	1,310 x 1,676 x 1,600	1,310 x 1,676 x 1,600	1,310 x 1,676 x 1,600	1,310 x 1,676 x 1,600
Sound level dB(A)	73	73	76	79
