EUROSOG-I-D
Industrial vacuum cleaner in A/C version for uninterrupted operation in workshops.
The EUROSOG-I-D is a high-performance industrial vacuum cleaner for coarse, dry, fine and granulated dusts. The AC version is especially suited for uninterrupted operation when cleaning in workshops. It is easy to move thanks to its smooth-turning castors. It comes fitted with a spacious dust collection container (capacity: 80 litres). The patented tilt-back mechanism allows dust to be disposed of effortlessly.
Gallery EUROSOG-I-D

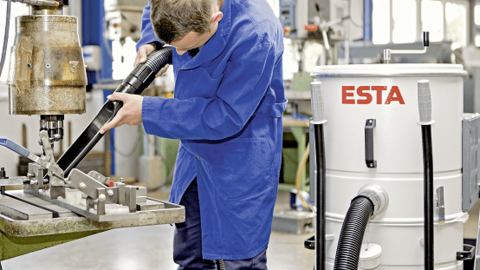

For cleaning processing machines
Can be used in many industries (e.g. wood and metal industry)
Removal of coarse and fine dusts when cleaning
- Sawing, cutting, separating
- Grinding, polishing
- Machining, milling
- Cleaning
- Drilling
- Turning
Wood shavings
Wood dusts
Metal dusts
Mineral dusts
Paper dusts
Tobacco fibres
Cotton wool fibres
Dust class M
Suitable for the extraction of harmful dusts.
Dust class H
Suitable for the extraction of all harmful/carcinogenic dusts.
ATEX-COMPLIANT
For use in areas subject to risk of explosion.
TÜV SÜD GS
Meets the requirements of the German Product Safety Act § 20 – 22 ProdSG.

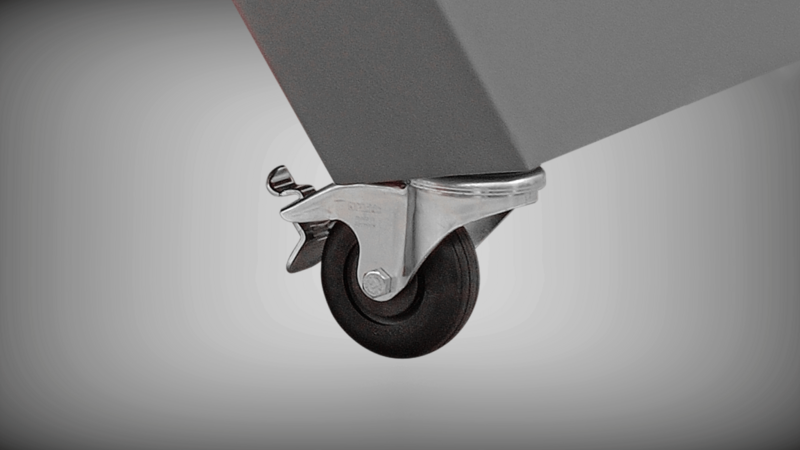

Mobile set-up
Easy and flexible to use makes it ideal for frequently-changing use locations.
Manual brush cleaning
Cartridge filters are fitted with brushes to remove dry and granulated dusts from the filter.
Low operating costs due to cleanable permanent filter
Tilt-back filter housing for easy dust disposal
Small space requirement due to compact design
High mobility by smooth-turning castors
Low-noise, high-performance vacuum cleaner for dry dusts
Manual brush cleaning
Cleanable long life filter cartridges available for dust class M and H
Test certificates M and H available
Optional as ATEX model
For defined uninterrupted operation (A/C vacuum cleaner)
Downloads & data EUROSOG-I-D
| EUROSOG | I-D |
|---|---|
|
Max. airflow m³/h | 360 |
|
Intake mm | 50 |
|
Max. negative pressure Pa | 19,500 |
|
Motor* kW | 2.2 |
|
Dust collection bin l | 80 |
|
Dimensions (L/B/H) mm | 1,030 x 670 x 1,240 |
|
Sound level dB(A) | 77 |
*Mains voltage/Mains frequency: 400V/50Hz
| EUROSOG | I-D |
|---|---|
| EUROSOG I-D/N (standard device) | 81198 |
| EUROSOG I-D/M with TÜV test certificate dust class M | 81399 |
| EUROSOG I-D/H with TÜV test certificate dust class H | 81299 |
| EUROSOG I-D ATEX design | 81200 |
CONTACT EUROSOG-I-D
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
Accessories EUROSOG-I-D
Vacuum cleaner accessories
Flexible uses for a range of applications.
Pipe system
For connecting several suction points to a central extraction system. Extensive range of robust & high quality processed spiral duct parts.
Plastic filling bags
Tough plastic sacks for collecting gathered dust for low-dust disposal. Multi-use.
