DUROSOG-I-D
Industrial vacuum cleaner, A/C version, for uninterrupted operation.
DUROSOG-I-D series is sure to impress thanks to its special filter technology for extracting dry dust, coarse abrasions, sticky dusts, shavings and materials which tend to form clumps. In this two-stage process, a pre-separator absorbs the coarse dirt. The fine dust is then captured by the disposable filter. DUROSOG-I-D (A/C variant) is designed for uninterrupted operation and is easy to move thanks to its smooth-turning castors.
Gallery DUROSOG-I-D

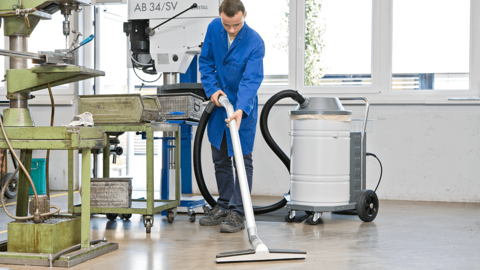

Cleaning wok in machines, workshops and in production halls
A/C version for defined uninterrupted operation - ideal for sticky materials and dusts which have a tendency to form clumps
- Sawing, cutting, separating
- Grinding, polishing
- Machining, milling
- Cleaning
- Drilling
- Turning
Metal shavings
Paper dusts
Tobacco fibres
Chemical dusts
Mobile set-up
Easy and flexible to use makes it ideal for frequently-changing use locations.
Dust class M
Suitable for the extraction of harmful dusts.
Dust class H
Suitable for the extraction of all harmful/carcinogenic dusts.
ATEX-Zone 22
For extracting dry, combustible, non-conductive dusts from Zone 22.
- Special filter technology for sticky dusts and materials which tend to clump
- Easy disposal of gathered dust using paper filters
- Small space requirement due to compact design
- Smooth-turning castors provide high mobility
- Suitable for defined uninterrupted operation (A/C vacuum cleaner)
- Integrated pre-separator for coarse dirt
- Replaceable paper filter
Downloads & data DUROSOG-I-D
| DUROSOG | I-D |
|---|---|
|
Max. airflow m³/h | 300 |
|
Intake mm | 50 |
|
Max. negative pressure Pa | 22,000 |
|
Motor* kW | 2.2 |
|
Dust collection bin l | 70 |
|
Dimension (L/B/H) mm | 850 x 630 x 950 |
|
Sound level dB(A) | 72 |
*Mains voltage/Mains frequency: 400V/50Hz
| DUROSOG | I-D |
|---|---|
| DUROSOG I-D/N (standard design) | 8120 N |
| DUROSOG I-D/M (dust class M) | 8120 M |
| DUROSOG I-D/H (dust class H) | 8120 H |
CONTACT DUROSOG-I-D
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
Accessories DUROSOG-I-D
Vacuum cleaner accessories
Flexible uses for a range of applications.
Pipe system
For connecting several suction points to a central extraction system. Extensive range of robust & high quality processed spiral duct parts.
Paper filter bag
Disposable bags for collecting gathered dust for low-dust disposal.
